SERIAL CABLE DB9F to 3.5mm DCS2

Part No87050
Stock 350 - IN STOCK
Price 1-9 $4.95
Price 10-99 $4.50
Price 100+ $4.25
Quantity
UPC Code820799870505

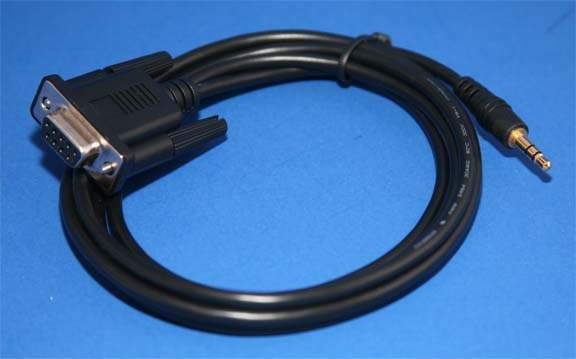

SERIAL CABLE DB9F to 3.5mm DCS2

6 Foot DB9-Female to 3.5mm TRS Connector Male

Generic Serial Transfer Cable For Devices
Stereo 3.5 mm Jack.
to DB9-F Serial Port.
Primarily used to transfer Serial Data back and forth from Small devices.


Wiring Schematic
DB9           TRS Tip-Ring-Sleeve Connector 3.5mm
Pin 1-6-7-8
Pin 2         Tip - Left
Pin 3         Ring - Right
Pin 4         Open
Pin 5         Open
Pin 9		Open
Shell		Sleeve-Shield-Ground
